- Write a recursive function $\texttt{int max$\_$rec(Btree B, int root$\_$index)}$ that returns the maximum element in a binary tree statically implemented rooted at index $\texttt{root$\_$index}$.

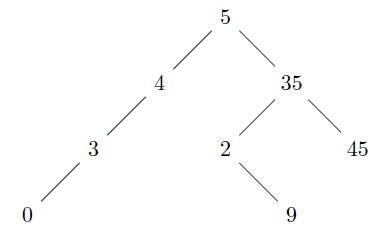

Example: Consider the following Binary tree and its representation using an array:
$\begin{array}{|c|c|c|c|} \hline\textbf{Index} & \textbf{Root} & \textbf{Left} & \textbf{Right} \\ \hline0 & \textit{Rnd} & \textit{Rnd} & \textit{Rnd} \\ \hline1 & 5 & 2 & 3 \\ \hline2 & 4 & 4 & 0 \\ \hline3 & 35 & 5 & 6 \\ \hline4 & 3 & 7 & 0 \\ \hline5 & 2 & 0 & 8 \\ \hline6 & 45 & 0 & 0 \\ \hline7 & 0 & 0 & 0 \\ \hline8 & 9 & 0 & 0 \\ \hline9 & \textit{Rnd} & -1 & \textit{Rnd} \\ \hline
\end{array}$where Rnd designates a random number.
-
$\texttt{max$\_$rec(B, 1)}$ returns 45;
-
$\texttt{max$\_$rec(B, 2)}$ returns 4 since the maximum element of the tree rooted at element of value 4 ($\texttt{root$\_$index}=2$) is equal to 4;
-
$\texttt{max$\_$rec(B, 5)}$ returns 9.
-
-
Without performing calculation, give the complexity of the above function.
-
Write a recursive function $\texttt{int isBST(Btree tree)}$ that checks whether a statically implemented Binary tree is a Binary Search Tree.
Your function should return 0 for the tree above. -
Write an iterative function that calculates the width of a statically implemented Binary tree.
Recall that the width of a tree is equal to the maximum of widths of all levels.
Your function should return 3 for the tree above.
Difficulty level
This exercise is mostly suitable for students
1.
int max_rec(Btree B, int i)
{
if(i==0) return INT_MIN;
if(B.data[i].left_subtree == 0 && B.data[i].right_subtree==0)
return B.data[i].root;
return max(B.data[i].root,
max(
max_rec(B,B.data[i].left_subtree),
max_rec(B,B.data[i].right_subtree)
)
);
}
2.
O(n) where n is the number of nodes in the tree
3.
int min_rec(Btree B, int i)
{
if(i==0) return INT_MAX;
if(B.data[i].left_subtree == 0 && B.data[i].right_subtree==0)
return B.data[i].root;
return min(B.data[i].root,
min(
min_rec(B,B.data[i].left_subtree),
min_rec(B,B.data[i].right_subtree)
)
);
}
int isBST(Btree tree)
{
return isBSTC(tree, tree.root_index);
}
int isBSTC(Btree tree, int i)
{
if(i == 0)return 1;
if(tree.data[i].left_subtree &&
max_rec(tree, tree.data[i].left_subtree) > tree.data[i].root)
return 0;
if(tree.data[i].right_subtree &&
min_rec(tree, tree.data[i].right_subtree) < tree.data[i].root)
return 0;
if(!isBSTC(tree, tree.data[i].left_subtree) ||
!isBSTC(tree, tree.data[i].right_subtree))
return 0;
return 1;
}
4.
int width(Btree A)
{
queue f =CreateQueue();
int lcour = 1, lmax = 1, nivcour = 1;
element1 E,X;
if (A.root_index == 0) return 0;
E.tree = A;
E.level = 1;
E.root=A.root_index ;
EnQueue(&f,E);
while(Front(f,&E))
{
if (E.level == nivcour) lcour++ ;
else
{
if (lcour > lmax) lmax = lcour;
lcour = 1;
nivcour = E.level;
}
DeQueue(&f);
if (E.tree.data[E.root].left_subtree!=0)
{
X.tree = E.tree;
X.level = E.level+1;
X.root=E.tree.data[E.root].left_subtree;
EnQueue(&f,X);
}
if (E.tree.data[E.root].right_subtree!=0)
{
X.tree = E.tree;
X.level = E.level+1;
X.root=E.tree.data[E.root].right_subtree;
EnQueue(&f,X);
}
}
return lmax;
}
